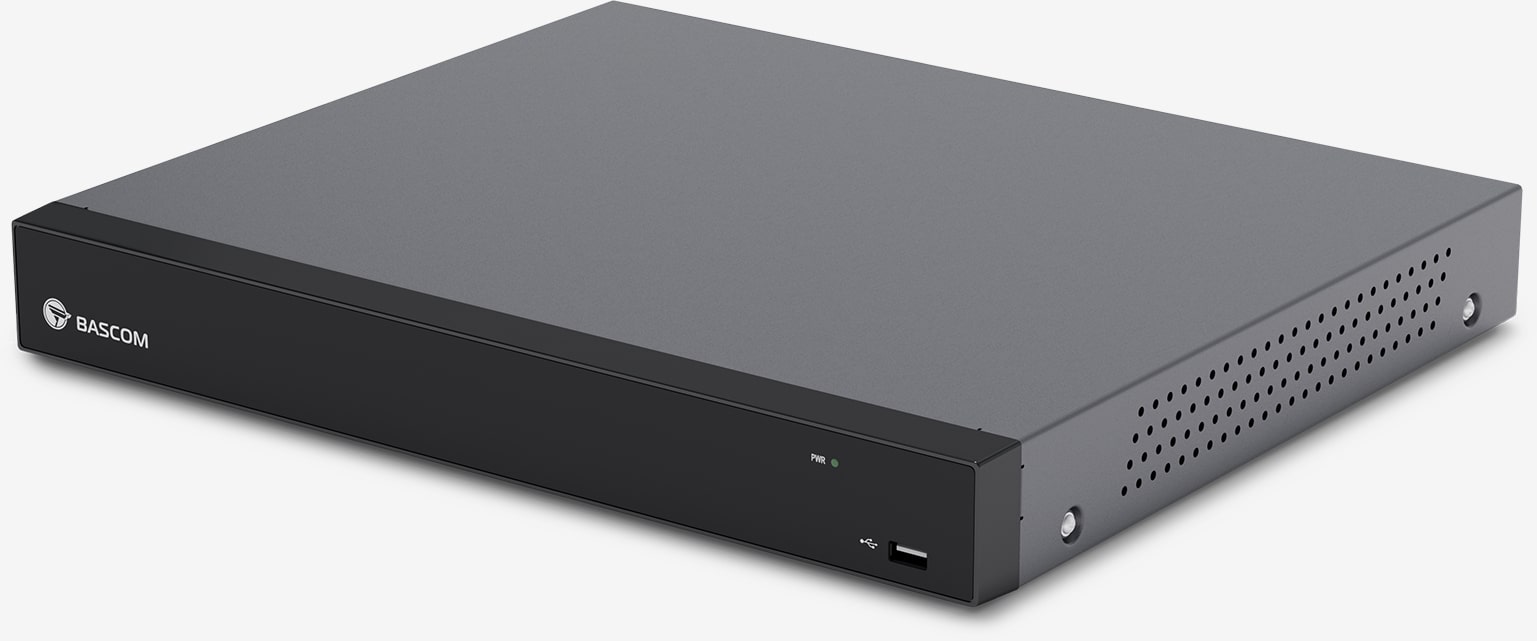

16-channel recorder

Dimensions

317 x 378 x 50 mm (L × W × H)

Connections

16 x RJ45 UTP port with PoE (cameras) ?PoE (Power over Ethernet) enables both images and power to be transmitted over a single UTP cable, eliminating the need for a separate power supply for the camera.
2 x RJ45 UTP port (internet)
2 x HDMI
1 x VGA
3 x USB
16 x alarm input
1 x alarm output
1 x audio output
1 x power supply (AC 100-240 V)
1 x eSATA
2 x SATA (already equipped with one 4 TB hard drive)

Recording & storage

Storage capacity: 4 TB (4000 GB) ?This provides enough space for several weeks of recordings. The exact duration depends on various factors, such as the number of cameras, the recording type (e.g. continuous or motion-triggered), and the amount of motion throughout the day.

Recording resolution: up to Ultra HD (4K) at 25 fps per camera

Recording options (adjustable per camera):

• Continuous recording

• Motion-triggered recording

• Scheduled recording

• Record on external alarm

• Do not record

Pre-record function ?The pre-record function, activated when 'recording on motion' is enabled, continuously saves the last 10 seconds of footage in a temporary memory. When motion is detected, these images are automatically added to the recording, so the recording starts before the visible moment of motion. This ensures you always have a complete picture.

Privacy masking: hide parts of the image with a black block to ensure privacy.

Overwrite mode: automatically overwrites the oldest images when storage capacity is reached.

Deletion policy: can automatically delete images after a preset period.

Use with screen

Compatibility: any TV or monitor with HDMI or VGA connection can be directly connected to the recorder

Main functions:

• View live footage

• Review recorded footage

• Back up images to USB stick

• Manage system settings

Good to know:

• No internet connection needed

• Operation with the included mouse

• Advanced options to display images (full screen, grid, automatic switching, etc.)

Use with smartphone

Compatibility: app for Android and iOS

Main functions:

• View live footage

• Review recorded footage

• Back up images to your smartphone

• Receive push notifications when motion is detected

• Manage system settings

Good to know:

• Supports multiple camera systems

• No need to adjust router settings. ?Thanks to P2P technology, the recorder can communicate directly with your smartphone or computer without the need to set up port forwarding on your router.

• High-speed European P2P servers

• No monthly fees

Use with computer

Compatibility: software for Windows and macOS.

Main functions:

• View live footage

• Review recorded footage

• Back up images to your computer

• Manage system settings

Good to know:

• Supports multiple camera systems

• No need to adjust router settings. ?Thanks to P2P technology, the recorder can communicate directly with your smartphone or computer without the need to set up port forwarding on your router.

• High-speed European P2P servers

• No monthly fees

Other

Interface language: English

Security: users and access rights

Continuous operation: automatically restarts after power outage and provides an audible alert if cameras go offline

Operating temperature: -20°C to 70°C

Power consumption: 12 W

Certification: CE (complies with EU safety standards)

Warranty: 2 years
